Home  >  Products  >  High Shear Dispersion Grinder Pump (DICONS)  >  10 X 6 Megagrinder  >  Parts

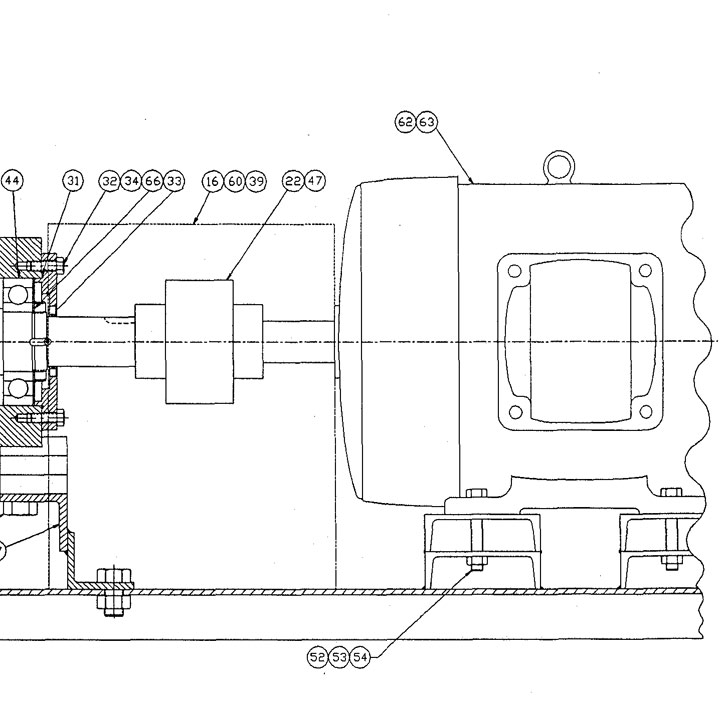

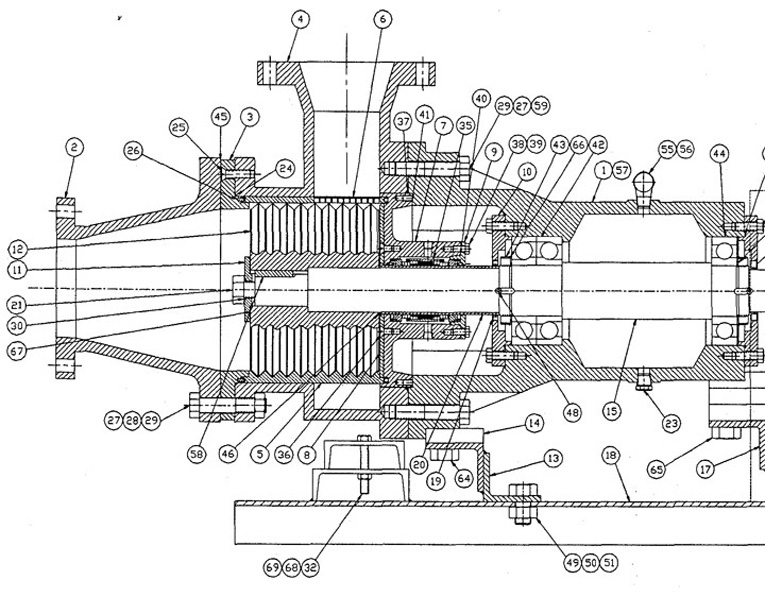

Parts C390


Item # SKU Name Our Price
1 D80136I FRAME - BEARING HOUSING $13,380.00 + Add to Cart
2 D80132I REDUCER (IRON) $1,982.00 + Add to Cart
2 D80132M REDUCER (316 S/S) $4,246.00 + Add to Cart
3 C80143P RETAINER $4,233.00 + Add to Cart
4 E80137I VOLUTE, PUMP HOUSING (DUCTILE IRON) $9,878.00 + Add to Cart
4 E80137M VOLUTE 316 S/S $19,798.00 + Add to Cart
5 C80131P TOOTHED LINER $944.00 + Add to Cart
6 D80150P OPEN LINER $566.00 + Add to Cart
6 D80150-4P 1/4" GRID $686.00 + Add to Cart
6 C80149P BLIND LINER (SPACER) $883.00 + Add to Cart
6 D80150-1P 1/16" GRID $1,043.00 + Add to Cart
6 D80150-6P 3/8" GRID $1,071.00 + Add to Cart
6 D80150-5P 5/16" GRID $1,100.00 + Add to Cart
6 D80150-2P 1/8" GRID $1,140.00 + Add to Cart
6 D80150-7P 1/2" DISCHARGE GRID $1,197.00 + Add to Cart
6 C80131-5P 5/16" GRID, TOOTHED $1,380.00 + Add to Cart
6 D80150-3P 3/16" GRID $1,495.00 + Add to Cart
7 C80130-1P SEAL HOUSING (SPECIAL) $4,625.00 + Add to Cart
7 C80130P SEAL HOUSING $5,111.00 + Add to Cart
8 B80140P WEAR PLATE $2,355.00 + Add to Cart
9 B80139L SEAL RETAINER $575.00 + Add to Cart
10 B80141S BEARING RETAINER $1,984.00 + Add to Cart
11 B80153L IMPELLER WASHER $401.00 + Add to Cart
12 D80142P IMPELLER $9,461.00 + Add to Cart
13 C80145S FRONT LEG $368.00 + Add to Cart
14 B80147-1S BASE SPACER $137.00 + Add to Cart
15 C80138-1S SHAFT, SHORT $5,775.00 + Add to Cart
15 C80138-2MS SHAFT SOLID MAR-10 (NO SLEEVE) $13,944.00 + Add to Cart
16 C80151-1S GUARD (25/30 HP) $164.00 + Add to Cart
16 C80151-2S GUARD (60 HP) $171.00 + Add to Cart
17 C80146S REAR LEG $389.00 + Add to Cart
18 D80166S BASE $1,578.00 + Add to Cart
19 A106-19 OIL SEAL $50.00 + Add to Cart
19 A106-19-1 IMPRO OIL SEAL (IMPELLER END) $1,620.00 + Add to Cart
20 B80144L SHAFT SLEEVE (LONG) $713.00 + Add to Cart
20 B80144-1L SHAFT SLEEVE, SHORT $830.00 + Add to Cart
21 S100C200HHL HEX HD SCREW, IMPELLER S/S 1" 8 X 2" $14.00 + Add to Cart
22 A106-22-1 CPLG. SURE FLEX 25/30 HP (WHOLE ASSY) $1,212.00 + Add to Cart
23 A106-68 OIL GAUGE #1141K37 $55.00 + Add to Cart
24 A106-24T O-RING, PTFE (RETAINER) $79.00 + Add to Cart
24 A106-24K O-RING, FLUROELASTOMER (RETAINER) $947.00 + Add to Cart
25 S50C200FHSL FLAT HD SOC. SCREW 1/2-13 X 2" $6.00 + Add to Cart
26 A63-24L DOWEL PIN 3/16" X 1/2" LONG $1.00 + Add to Cart
27 S88C450HHS HEX HD SCREW 7/8-9 X 4-1/2" $4.00 + Add to Cart
28 N88CHHS 7/8"-9 NUT $2.00 + Add to Cart
29 W88LS WASHER 7/8 SPLIT LOCK $2.00 + Add to Cart
30 A106-30T O-RING, PTFE (IMP. WASHER) $3.00 + Add to Cart
30 A106-30K O-RING, FLUROELASTOMER (IMP. WASHER) $57.00 + Add to Cart
31 A106-31BU O-RING, BUNA A (BRG. RETAINER) $3.00 + Add to Cart
32 W50LS 1/2" I.D. LOCKWASHER, STEEL $1.00 + Add to Cart
33 A106-33 OIL SEAL $51.00 + Add to Cart
33 A106-33-1 IMPRO OIL SEAL (CPLG. END) $1,418.00 + Add to Cart
34 S50C150HHS 1/2-13 X 1-1/2" LONG HEX BOLT $2.00 + Add to Cart
35 A106-35JCT DBL. MECH. SEAL $3,788.00 + Add to Cart
35 A106-35-1 DBL. CARTRIDGE SEAL $9,777.00 + Add to Cart
36 S38C075FHSL FLAT HD SOC. SCREW 3/8-16 X 3/4" $4.00 + Add to Cart
37 A106-37T O-RING, PTFE (VOLUTE) $131.00 + Add to Cart
37 A106-37K O-RING, FLUROELASTOMER (VOLUTE) $1,356.00 + Add to Cart
38 S38C100HHL HEX HD CAP SCREW 3/8-16-1" (4 REQ'D) $1.00 + Add to Cart
39 W38LS 3/8" LOCKWASHER (4 REQ'D) $1.00 + Add to Cart
40 A106-40T O-RING, PTFE (SEAL RET.) $15.00 + Add to Cart
40 A106-40K O-RING, FLUROELASTOMER (SEAL RET.) $285.00 + Add to Cart
41 S38C150HHS HEX HD CAP SCREW 3/8-16 X 1-1/2" $1.00 + Add to Cart
42 A106-42 BEARING, (2 BRG. SET) $2,975.00 + Add to Cart
43 NAN16-LS BEARING NUT $63.00 + Add to Cart
44 A106-44 BEARING $1,331.00 + Add to Cart
45 A106-45 GASKET, 10" PIPE SIZE VELAMOID $17.00 + Add to Cart
45 A106-45T GASKET, 10" PIPE SIZE, PTFE $103.00 + Add to Cart
46 A106-46K O-RING, SLEEVE FLUROELASTOMER $455.00 + Add to Cart
47 K6350388S COUPLING KEY #47 $17.00 + Add to Cart
47 K6363388S SHAFT KEY 5/8" SQ. X 3-7/8" STEEL $17.00 + Add to Cart
48 S31C075SSL SCREW (FOR SHORT SLEEVE) $2.00 + Add to Cart
49 N100CHHS 1"-8 NUT $8.00 + Add to Cart
50 S100C200HHS HEX HD SCREW 1" 8 X 2" $4.00 + Add to Cart
51 W100LS WASHER 1" SPLIT LOCK $2.00 + Add to Cart
52 S63C450SDS STUD, 5/8-11 X 4-1/2" FULL THREAD $4.00 + Add to Cart
53 W63LS WASHER 5/8" SPLIT LOCK $1.00 + Add to Cart
54 N63CHHS 5/8"-11 NUT $2.00 + Add to Cart

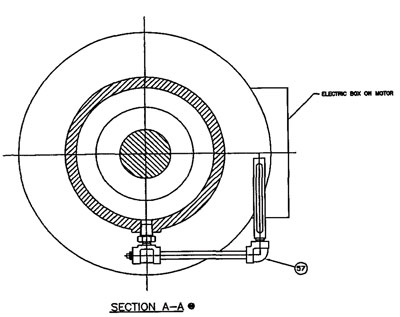

57 B80173 SIGHT GLASS ASSY, VERTICAL $299.00 + Add to Cart
58 K3838225B IMPELLER KEY 3/8" SQ. 2-1/4" $14.00 + Add to Cart
59 S88C200HHS HEX HD SCREW 7/8-9 X 2" $8.00 + Add to Cart
55, 56 A63-3HD BREATHER/VENT PLUG $16.00 + Add to Cart
60 S38C050HHS HEX HD SCREW 3/8-16-1/2" $1.00 + Add to Cart
62 K5050325S MOTOR KEY 1/2" SQ. X 3-1/4" STEEL $12.00 + Add to Cart
62 K6363413S MOTOR KEY 5/8" SQ. X 4-1/8" $59.00 + Add to Cart
64 S100C250HHS HEX HD SCREW 1" 8 X 2-1/2" $5.00 + Add to Cart
65 S100C450HHS HEX HD SCREW 1" 8 X 4-1/2" $21.00 + Add to Cart
66 W16-LS BEARING LOCKWASHER $24.00 + Add to Cart
67 B80156-3T IMPELLER GASKET $26.00 + Add to Cart
68 S50C300HHS HEX HD SCREW 1/2-13 X 3" $3.00 + Add to Cart
69 N50CHHM 1/2-13 UNC HEX NUT (REPLACED N50CHHL) (2 REQ'D) $2.00 + Add to Cart
70 A315-26L 1/8" DIA. X 5/16" DOWELL PIN (FOR SEAL HOUSING) $1.00 + Add to Cart
B80172D MECHANICAL SEAL INSTALLATION TOOL $75.00 + Add to Cart
A106-48L SPRING PIN (LONG SLEEVE) $1.00 + Add to Cart
B80171E TOOL IMPELLER LINE-UP INSTALLATION TOOL $205.00 + Add to Cart
