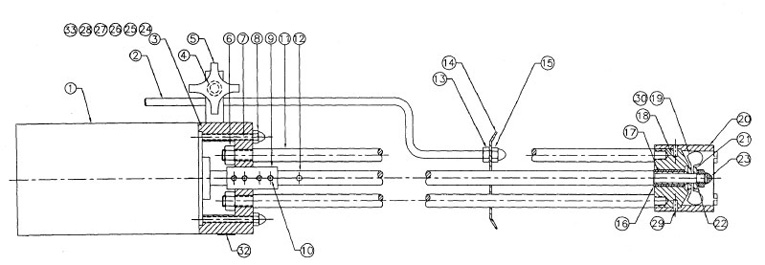

High Shear Homogenizing Mixer (REVERSIBLE HOMOGENIZERS)

Parts C408


Item # SKU Name Our Price
1 B90547-MOD MOTOR WITH POWER CORD/ADAPTER(CJ-4D) LIMITED AVAILABILITY
1 B90547 MOTOR WITH POWER CORD (CJ-4A,B,C) LIMITED AVAILABILITY
1 B90547-4W TEFC MOTOR WITH POWER CORD (CJ-4D/E CONTROL BOX) LIMITED AVAILABILITY
1 Z2 MOTOR BRUSHES (SET OF 2) MODEL CJ-4A,B,C,D,E $42.00 More Info
1 Z2-1 MOTOR BRUSHES (SET OF 2) MODEL CJ-4AD ONLY $67.00 + Add to Cart
1 B90547-6AD 1 HP MOTOR $1,927.00 + Add to Cart
2 B90120-2M BAFFLE ROD $110.00 + Add to Cart
3 B90211L-BS HOUSING - MOTOR SUPPORT S/S (REPLACED B90211L) $1,274.00 + Add to Cart
3 B90211L-BSX HOUSING - MOTOR SUPPORT 1 HP $2,176.00 + Add to Cart
4 B90121L BUSHING $30.00 + Add to Cart
5 B9018F CLAMP SCREW ASS'Y, PLASTIC $16.00 + Add to Cart
5 B9018F-1 CLAMP SCREW ASS'Y 304 S/S (4" THREADED ROD WITH SLEEVE) $120.00 + Add to Cart
5 B9018F-2 CLAMP SCREW ASSY 304 S/S (3/4" KNOB WITH 3/4" LONG STUB) $177.00 + Add to Cart
6 N38FHHL HEX HD JAM NUT 3/8-24 UNF $1.00 + Add to Cart
7 S19F250SDL 10/32 X 2-1/2" THREAD ROD STUD S/S $4.00 + Add to Cart
8 N19FAHM ACORN NUT 10-32 UNF $6.00 + Add to Cart
9 B90209M STRAIGHT COUPLING $161.00 + Add to Cart
9 B90209MX STRAIGHT CPLG 316 S/S - 1 HP MOTOR $477.00 + Add to Cart
10 S19F025SSM #10-32 SET SCREW S/S $1.00 + Add to Cart
11 B90208M-20 SUPPORT ROD 316 S/S CJ-4 20" $381.00 + Add to Cart
11 B90208M SUPPORT ROD 16" $414.00 + Add to Cart
12 B90201M MIXER OUTPUT SHAFT $401.00 + Add to Cart
12 B90201M-20 MIXER SHAFT 316 SS - 20" LENGTH $669.00 + Add to Cart
14 B90288M BAFFLE PLATE $97.00 + Add to Cart
15 N25CAHM ACORN NUT 1/4-20 UNC $8.00 + Add to Cart
16 B90097JA RULON J BEARING #641 $79.00 + Add to Cart
16 B90198-2PKOL BEARING 17-4 PH ABRAS. RES. (USE WITH B90096MKOL ONLY) $179.00 More Info
16 B90198-1PKOL BEARING 17-4 PH ABRAS. RES.(REPLACED B90198C) $179.00 + Add to Cart
17 B90096MKOL BEARING SLEEVE 316 S/S ABRASION RESISTANT $174.00 + Add to Cart
17 B90096PKOL BEARING SLEEVE, 17-4 PH ABRASION RESISTANT (REPLACED B90096M/B90096MKOL) USE WITH B90097JA AND B90198-2PKOL ONLY $191.00 + Add to Cart
17 B90421C STELLITE SLEEVE (USED WITH B90198-1PKOL ONLY) $353.00 + Add to Cart
18 B90205M UPPER STATOR 316 S/S $646.00 + Add to Cart
19 B90168M ROTOR 4/24 316 S/S $278.00 + Add to Cart
20 C90213M STATOR SLEEVE $629.00 + Add to Cart
21 B90128M ROTOR/THRUST MOTOR WASHER $113.00 + Add to Cart
22 W31LM 5/16" 316 S/S SPRING LOCKWASHER (REPLACED W31LS) (11 REQ'D) $1.00 + Add to Cart
23 N31CAHM 5/16-18 ACORN NUT 316 S/S $12.00 + Add to Cart
24 B90124L ARM SUPPORT $55.00 + Add to Cart
25 B90125A CROSS CLAMP (MTR. SUPPORT) $210.00 + Add to Cart
26 B9192F TORQUE KNOB - SCREW CLAMP ASSY $17.00 + Add to Cart
27 B90123L UPRIGHT - PIPE $527.00 + Add to Cart
28 D90122L BASE/STAND $773.00 + Add to Cart
29 B90183M THUMB SCREW $127.00 + Add to Cart
30 B90434M HI-PERFORMANCE ROTOR $249.00 + Add to Cart
31 D9198-R VARIABLE SPEED CONTROLLER (CONTROL BOX) CJ-4C $1,765.00 + Add to Cart
31 D9198-B VARIABLE SPEED CONTROLLER (CONTROL BOX) CJ-4B $1,894.00 + Add to Cart
31 D9198-2 VAR. SPEED CONTROL (CONTROL BOX) CJ-4 0.75 HP $2,180.00 + Add to Cart
31 D9198-2AD VAR. SPEED CONTROL (CONTROL BOX) CJ-4AD 1 HP $2,337.00 + Add to Cart
31 D9198-1 VARIABLE SPEED CONTROLLER (CONTROL BOX) CJ-4D/E 230V $2,411.00 + Add to Cart
32 B90532A NAME PLATE $13.00 + Add to Cart
33 B90216L S/S STOP COLLAR $44.00 + Add to Cart
Z6 MOTOR BRUSH HOLDER (CJ-4C/D/E) $286.00 + Add to Cart
Z55 BEARING REMOVAL TOOL (USE WITH RULON BEARINGS ONLY) $25.00 + Add to Cart
Z5-1 BRUSH CAP (CJ-4AD MOTOR) $2.00 + Add to Cart
Z5 BRUSH (SCREW) CAP (CJ-4C/D/E) $13.00 + Add to Cart
Z6-2 BRUSH HOLDER (CJ-4AD MOTOR) $14.00 + Add to Cart
Z82 12 AMP FAST ACTING CERAMIC FUSE $5.00 + Add to Cart
Z59 FBR SWITCH $218.00 + Add to Cart
Z29L-1 MOTOR BEARING CJ-4AD (Z29L NEEDED ALSO) $95.00 + Add to Cart
Z8 FAN COVER $42.00 + Add to Cart
Z49 POTENTIOMETER, SPEED (RHEOSTAT) CJ-4C&D $46.00 + Add to Cart
C90541L MTG. PL, VALVE $133.00 + Add to Cart
Z7 MOTOR SCREENS $5.00 + Add to Cart
Z52 RHEOSTAT (POT ONLY) CJ-4C&D $28.00 + Add to Cart
Z12 CIRCUIT BREAKER $78.00 + Add to Cart
Z10 CONTROL BOX PLUG (CJ-4A,B,C BOX) 4 PRONG MALE $15.00 + Add to Cart
Z10-1 WIRING HARNESS/PLUG ASS'Y - CJ-4A,B,C GREY $122.00 + Add to Cart
Z10-2 WIRING HARNESS/PLUG ASS'Y - CJ-4D/E YELLOW $341.00 + Add to Cart
Z29L MOTOR BEARING S/S (REPLACED Z29) $89.00 + Add to Cart
Z1-2 MOTOR FAN (CJ-4E) $98.00 + Add to Cart
Z4 RECEPTICAL (CJ-4C BOX) $15.00 + Add to Cart
Z20-1 CIRCUIT BOARD (ELECTRO) NEW - CJ-4C $872.00 + Add to Cart
A600-79-1 POWER CORD/CONTROL BOX (CJ-4A,B,C) $26.00 + Add to Cart
Z21 REVERSING SWITCH FOR CONTROL BOX (CJ-4C,D,E) $198.00 + Add to Cart
Z20-3 CIRCUIT BOARD CJ-4D/E(ELECTRO) $972.00 + Add to Cart
B90519A ADAPTER PLATE, MTR $116.00 + Add to Cart
B90542M CPLG. STRAIGHT AIR MTR $197.00 + Add to Cart
CJ-4AD-1 20" IMMERSION MIXER WITH MOTOR ONLY (NO STAND/CONTROL BOX) $4,111.00 + Add to Cart
Z20 CIRCUIT BOARD (DART) CJ-4C $417.00 + Add to Cart
Z1 MOTOR FAN (CJ-4C/CJ-4D) $21.00 + Add to Cart
